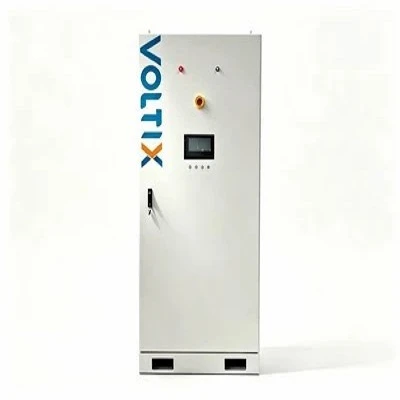

Product Overview
This 51.2V LiFePO4 Battery Management System (BMS) is engineered for 16-series (16S) lithium iron phosphate energy storage packs. It monitors cell voltages, pack voltage, charge/discharge current, and internal temperatures to protect the battery array against overcharging, deep discharging, short circuits, and thermal anomalies. The hardware architecture features dedicated analog front-end (AFE) monitoring ICs coupled with an independent microcontroller unit (MCU), executing real-time state-of-charge (SoC) and state-of-health (SoH) calculations. Integrated RS485 and CAN communication interfaces enable protocol handshake with standard hybrid inverters and energy management systems (EMS).
Key Specifications
|
Parameter |
Specification Value |
|
Nominal System Voltage |
51.2V (16S LiFePO4) |
|
Operating Voltage Range |
40.0V – 58.4V |
|
Max Continuous Discharge Current |
100A / 150A / 200A (Model dependent) |
|
Max Continuous Charge Current |
50A / 100A |
|
Voltage Measurement Accuracy |
+/-10 mV (from -20C to 70C) |
|
Current Measurement Accuracy |
+/-1 percent (Full scale via high-precision shunt resistor) |
|
Temperature Sensors |
4 NTC probes (Cell pack & MOS temperature monitoring) |
|
Communication Protocols |
CAN 2.0B, RS485, RS232 (Modbus protocol supported) |
|
Operating Temperature |
-20C to +70C |
|
Storage Temperature |
-40C to +85C |
Key Product Characteristics
Dual-Core Hardware Protection: Independent hardware-level protection layer acts as a fail-safe against firmware lockups during catastrophic short-circuit events.
Active Cell Balancing: Utilizes bypass balancing topology to equalize individual cell voltages during the charging phase, mitigating capacity divergence across aging cells.
Thermal Management Integration: Dynamic derating algorithms lower charge/discharge current limits when internal NTC sensors record temperatures exceeding +55C or dropping below 0C.
Low Static Power Consumption: Sleep mode current draw is kept below 100 uA, preventing deep depletion of cell packs during prolonged warehouse storage or grid outages.
Hardware Architecture & BOM Breakdown
Topology: Master BMS controller integrating AFE acquisition boards, current shunt, optocoupler-isolated MOSFET/relay drive circuits, and communication ports.
Switching Elements: Low on-resistance power MOSFETs configured in common-negative layout to minimize thermal dissipation and voltage drop under 200A continuous load.
Wiring Harness: High-conductivity tinned copper busbars and polarized multi-pin locking connectors resistant to industrial vibration.
Firmware: Factory-flashed embedded code supporting customizable protection thresholds, discharge cutoff curves, and inverter matching profiles.
Applications
Residential Energy Storage Systems (ESS): 51.2V rack-mounted and wall-mounted household battery modules.
Commercial & Industrial (C&I) Backup: Auxiliary power supplies and telecommunication base station power racks.
Off-Grid Power Generation: Remote solar-plus-storage microgrids operating in harsh ambient environments.
Low-Speed Electric Vehicles: Industrial AGVs and heavy-duty electric mobility packs requiring 48V–51.2V nominal architectures.
Compatibility & Integration
Inverter Protocols: Native integration libraries for major inverter brands including Victron, GoodWe, Growatt, Deye, and Pylontech-compatible CAN/RS485 registers.
PC Tool Interface: Diagnostic software connects via RS232/USB adapter for real-time telemetry logging, historical fault-code retrieval, and parameter re-calibration.
Parallel Operation: Supports up to 16 identical battery packs connected in parallel via master-slave communication architecture without external hub controllers.
Supply & Customization Options
Manufacturing Capacity: Standard lead time of 2 to 4 weeks backed by automated SMT placement lines and multi-channel aging test benches.
Hardware Modifications: Custom PCB footprint layout, alternative current sensor ratings (Shunt or Hall effect), and tailored wire harness pinouts.
Software Customization: Proprietary CAN ID generation, custom LCD screen integration, and specialized shutdown voltage thresholds.
Quality / Testing
Traceability: Barcode tracking assigned to every individual PCB from component SMT loading to final PACK assembly.
Testing Protocols: 100% board-level automated optical inspection (AOI), functional in-circuit testing (ICT), and 48-hour high-temperature aging burn-in at +55C.
Compliance Standards: Manufactured under ISO9001 certified quality management systems; circuit designs compliant with CE and RoHS directives.
FAQ
Q: Can the BMS parameters be modified by end-users?
A: Default protection parameters are locked to prevent misconfiguration. Authorized engineering teams can adjust thresholds using proprietary PC configuration software and a security password.
Q: What happens if the CAN communication link with the inverter drops?
A: The BMS defaults to voltage-based standalone protection mode, maintaining internal safety limits (overvoltage/undervoltage cutoff) independently of inverter instructions.
Q: How does the system handle low-temperature charging?
A: When cell temperature falls below 0C, the BMS issues a charging prohibition signal to the inverter via CAN bus to prevent lithium plating and permanent anode damage.
